SAE100R9/R10/R12

Four Layers Spiral Steel Wire Reinforced,Hydrauic Hose

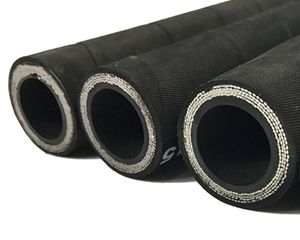

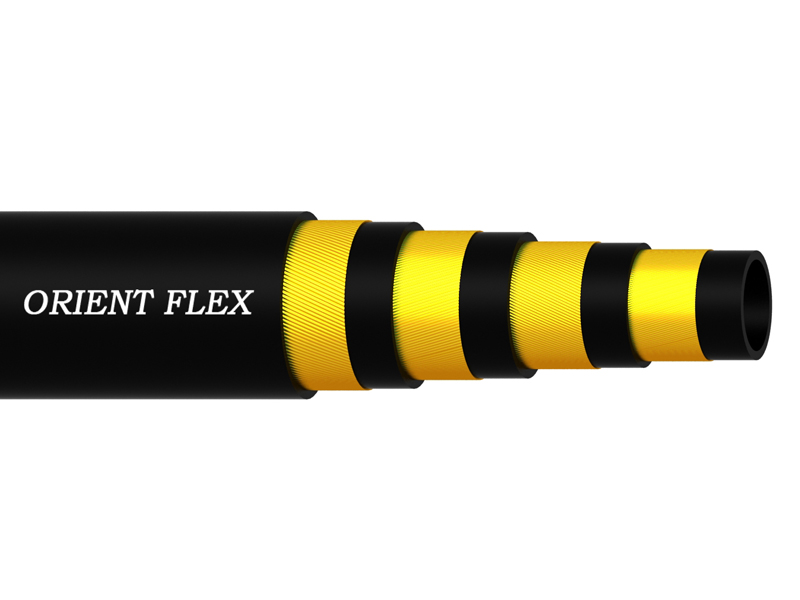

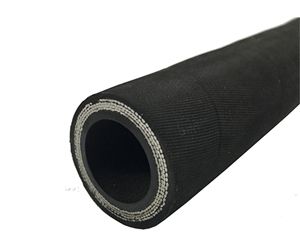

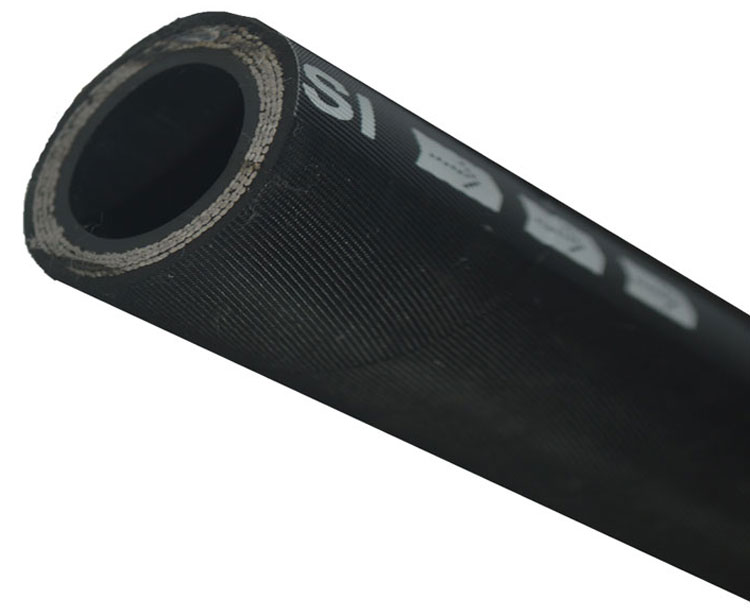

SAE 100 R9/R10/R12 Steel Wire Spiraled Hydraulic Hose is suitable for delivering petroleum-based hydraulic oils and it is mainly used in high pressure working conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from black oil resistant synthetic rubber, making it have outstanding performance in delivering petroleum-based hydraulic oils. The reinforcement is made from four layers of high tensile and high strength thick spiraled steel wire in alternating direction, making the hose resistant to extremely high pressure. The cover is made from high quality synthetic rubber, which is resistant to abrasion, corrosion, weather, ozone, cut, aging and sunlight.

Recommended For: Extremely high pressure, high impulse hydraulic applications. Exceeds all performance requirements for SAE 100 R9 / R10 / R12, EN856 R9 / R10 / R12, SAE 100 R12 and EN856 4SP. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.

Tube: Black, oil-resident synthetic rubber (Nitrile)

Reinforcement: Four alternating layers of spiraled, high-tensile steel wire.

Cover: Black, oil-resistant synthetic(Nitrile).

SAE 100 R9/R10/R12 Steel Wire Spiraled Hydraulic Hose Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)

SAE 100 R9/R10/R12 Steel Wire Spiraled Hydraulic Hose Application: Hydraulic system service with petroleum and water-based fluids, for general industrial use


ORIENTFLEX has a strong sales and service team of 20 people, with more than five years

experience in foreign trade, to provide professional services for customer.

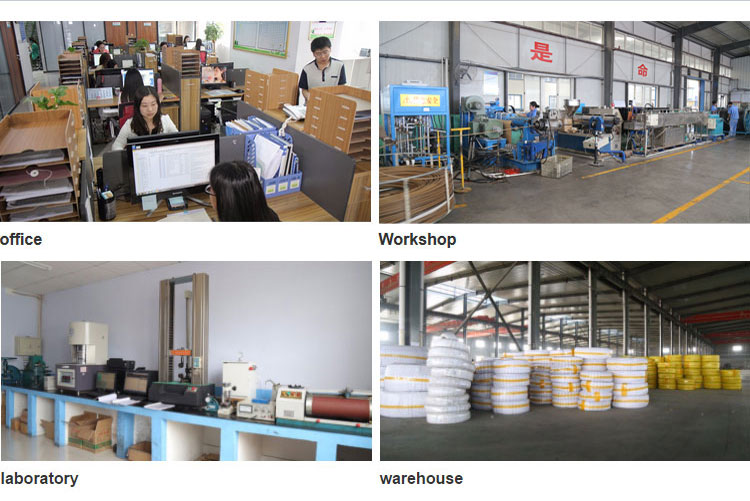

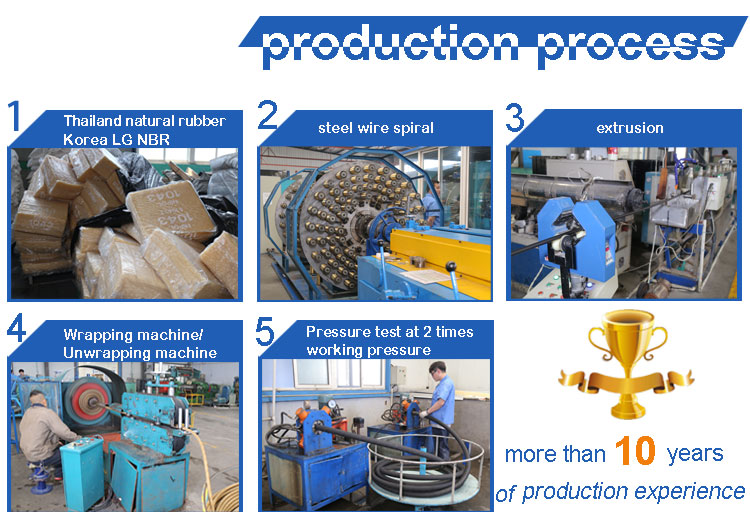

ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid

machines,15 high-speed steelwire braid machines,2 steel wire spiral production lines.45 PVC hose production lines.We have introduced VP brand Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.

ORIENTFLEX has strong quality control team,we set up advanced laboratory.Before mass

production,we test each batch raw material.After production,we test each hose to guarantee 100% qualification.

Good quality materials make our hose steady performance.
Our factory introduce advanced teconology and equipment to make the bets quality EN856 4SH and EN856 4SP . We have much experience of exporting and we produce the best quality EN856 4SH and EN856 4SP

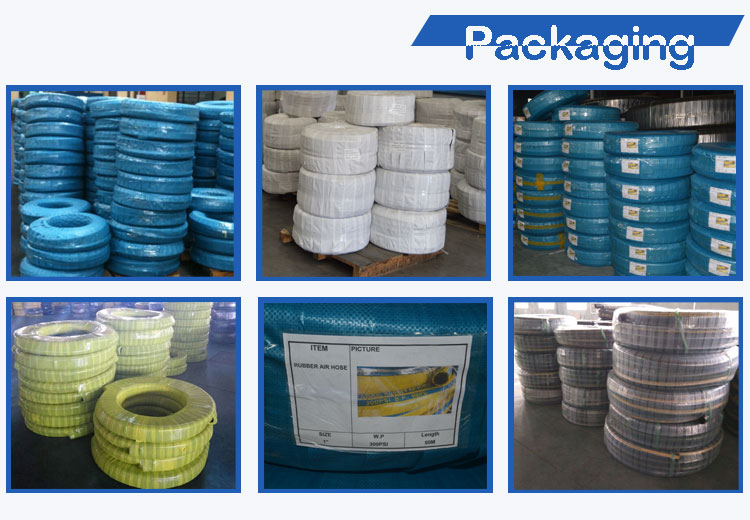

Packing:After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.

Certifications:All Product Meet The Standard Of ISO And The Requirement Of API.
