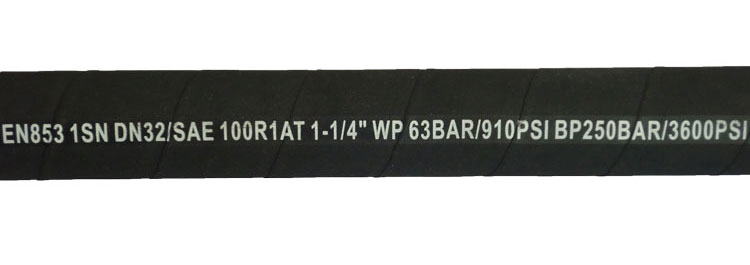

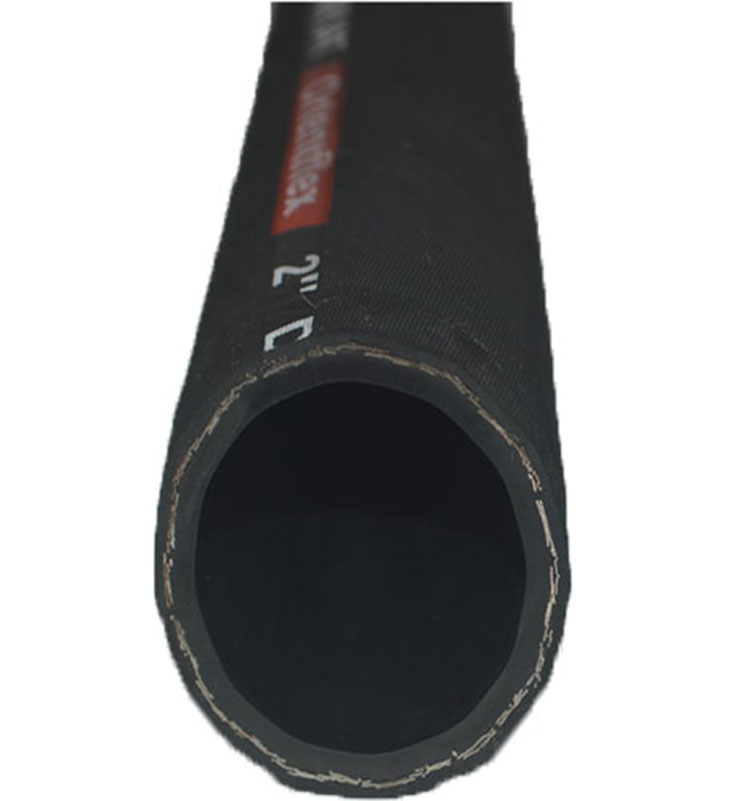

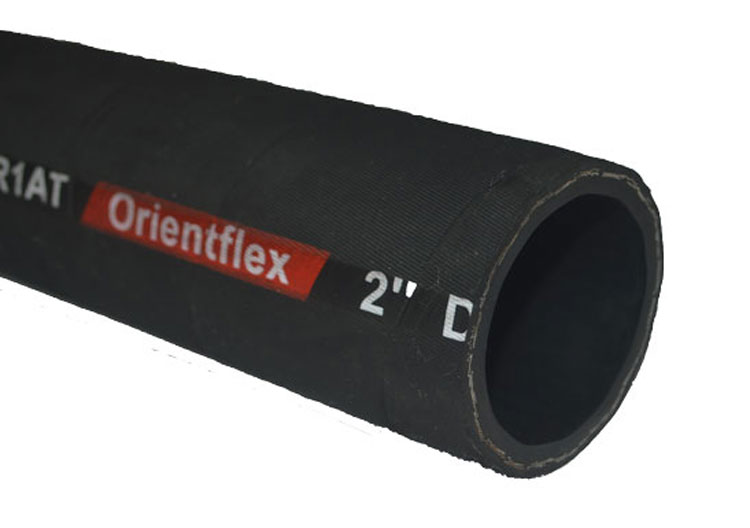

SAE 100R1 AT / DIN20022 EN 853 1SN

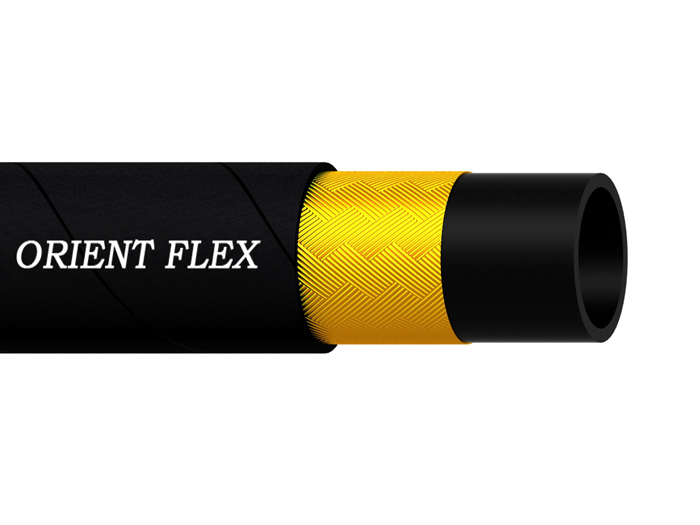

SAE 100 R1 steel wire reinforced hydraulic hose is suitable for hydraulic hose and usual industrial systems. It can bear higher working pressure than other rubber hoses thanks to its high tensile braided steel wire reinforcement. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, making the hose have excellent performance in delivering oils. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have outstanding high pressure resistance. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging, sunlight and cut. Therefore, it has longer service life.

Hydraulic Hose SAE 100R1 Recommended For:

Medium pressure hydraulic hoses. Meets or exceeds the requirements of SAE 100 R1 Type AT and performance requirements of EN 853 1SN.

Hydraulic Hose SAE 100R1 Application Fields:

Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery.

INNER TUBE: oil resistant synthetic nitrile rubber

REINFORCEMENT: single layer of steel wire braided

COVER: Black, oil resistant, synthetic rubber

SURFACE: wrapped surface,smooth surface

Hydraulic Hose SAE 100R1 TEMPERATURE RANGE: -40℃（-104℉） to +100℃ （+212℉）

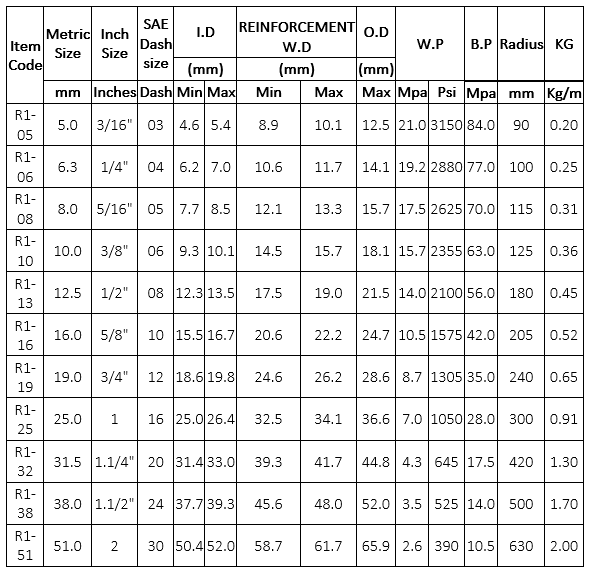

Hydraulic Hose Standard: SAE 100 R1 AT:

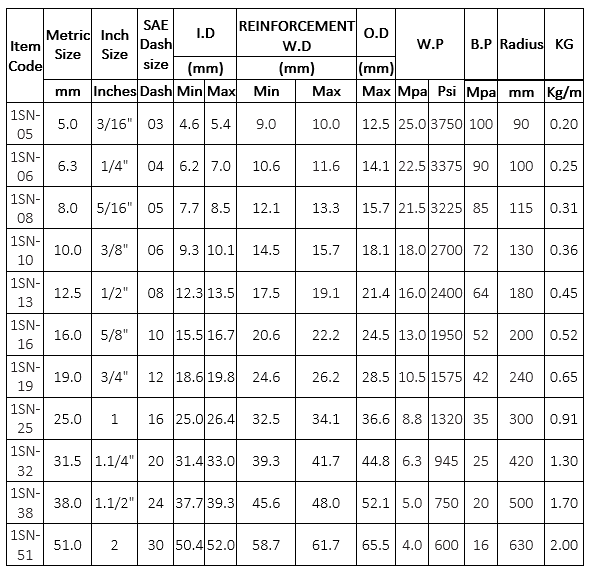

Hydraulic Hose Standard: EN853 1SN:


ORIENTFLEX has a strong sales and service team of 20 people, with more than five years

experience in foreign trade, to provide professional services for customer.

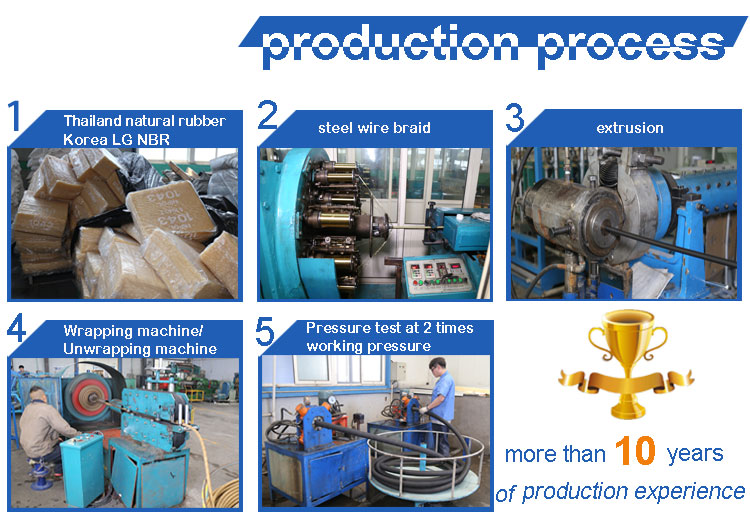

ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid

machines,15 high-speed steelwire braid machines,2 steel wire spiral production lines.45 PVC hose production lines.We have introduced VP brand Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.

ORIENTFLEX has strong quality control team,we set up advanced laboratory.Before mass

production,we test each batch raw material.After production,we test each hose to guarantee 100% qualification.


   Good quality materials make our hose steady performance.
 Our factory introduce advanced teconology and equipment to make the bets quality SAE100 R1 and EN853 1SN. We have much experience of exporting and we produce the best quality hydraulic hose R1.

Packing:After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.

Certifications:All Product Meet The Standard Of ISO And The Requirement Of API.
