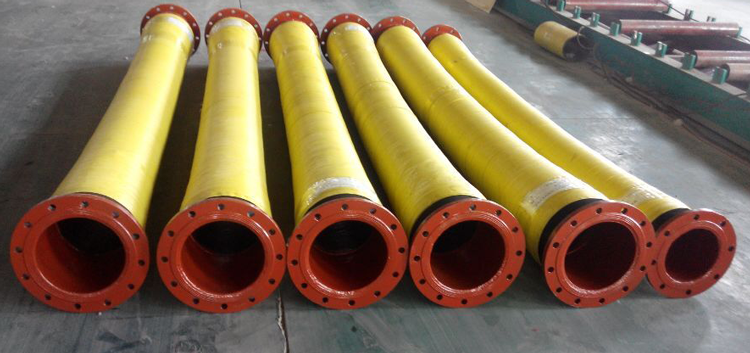

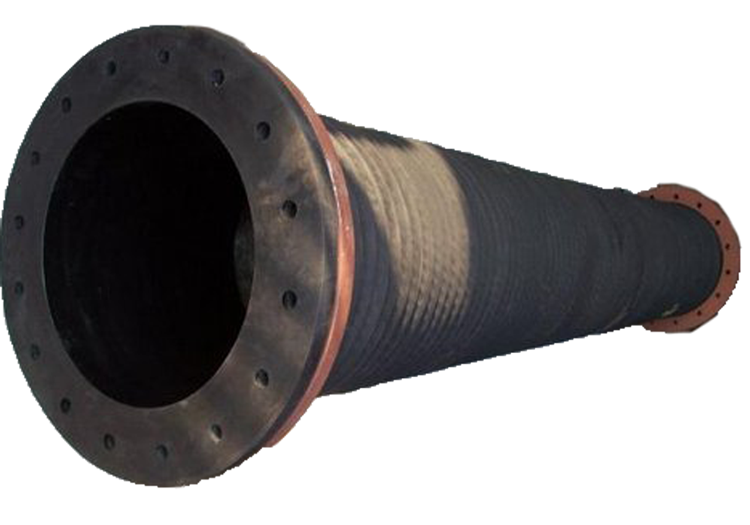

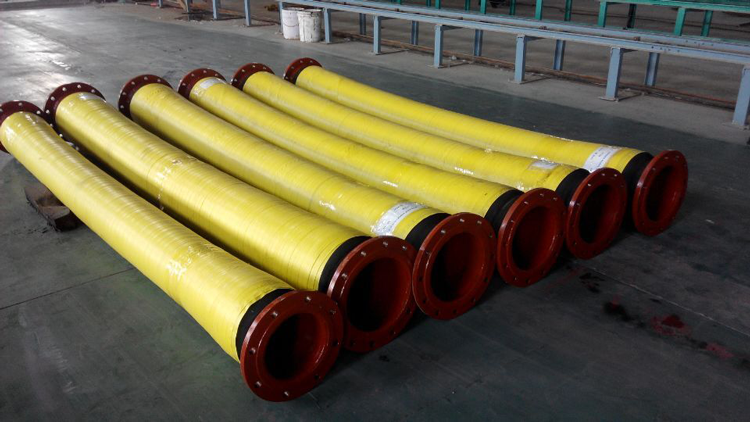

Mining Slurry Hose

Mining Slurry Hose. Pure Gum Liner. Tough, rubber, versatile alternative to inflexible, cumbersome steel tubing. The easy handling and reusable quick-fastening flange system make installation a snap. Absorbs system vibration and saves wear on equipment. Compensates for thermal expansion and contraction, reduces noise. Flexible connection for hard piping misalignment. In mining and other highly abrasive applications, slurry hoses have internal linings to mitigate abrasive wear on the hose. Additionally, the main pipelines used in high abrasive pumping operations are also usually lined with rubber or other material to reduce wear.

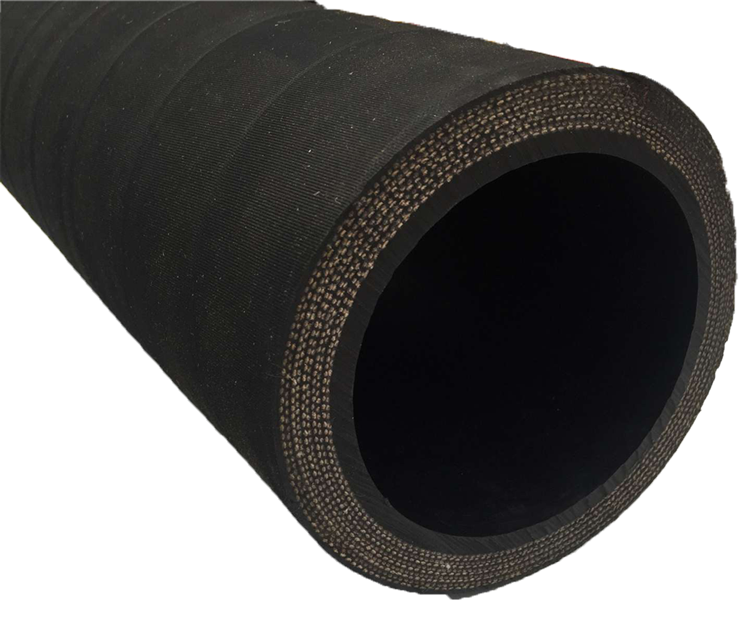

Mining Slurry Hose Construction:

Tube: Black NR/SBR rubber compound.

Reinforcement: Multi ply synthetic fabric with wire helix.

Cover: Black NR/SBR corrugated abrasion and weather resistant.

Mining Slurry Hose Application:

Slurry hoses are designed primarily for handling abrasive and viscous slurries from mine and quarries. They can also be used for handling dry materials such as sand, gravel and grains. The external bolt on the flanges allow for easy installation and uninterrupted free flow.

Mining Slurry Hose Characteristic:

●Rugged Versatile alternative to inflexible steel piping system

●Absorb system vibration and saves wear on equipment.

●Can be cut to length and assembled on-site for immediate installation

●Split flange coupling

Mining Slurry Hose Temperature:

-40℃ to +82℃ (-40 ℉ to +180 ℉ )

Material: Good quality materials make our hose steady performance.

Production: Advanced technology and equipment to make the best quality rubber slurry/mud hose.

After finishing the slurry/mud hose production, we will pack the hose.

In general, the packing will use woven bag and plastic film.

Special packing is available according to customers’ requirements.

1. ORIENTFLEX has a strong sales and service team of 20 people, with more than 10 years experience in foreign trade, to provide professional services for customer.

2. ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines, 15 high-speed steel wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines. We have introduced VP brand Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.

3. Our factory has strong quality control team, we set up advanced laboratory.

Before the mass production, we test each batch of raw material.

After the production, we test each hose to guarantee a 100% qualification.

Each hose tested at 2 times of working pressure.

We do everything possible to supply good quality goods for our customer.

4. ORIENTFLEX has three warehouses.

Our product has exported to over 30 countries, including the United States, Britain, Brazil, Russia and so on. and we participate in overseas exhibitions every year.

Construction:

Tube: Black NR/SBR rubber compound.

Reinforcement: Multi ply synthetic fabric with wire helix.

Cover: Black NR/SBR corrugated abrasion and weather resistant.

Application:

Slurry hoses are designed primarily for handling abrasive and viscous slurries from mine and quarries. They can also be used for handling dry materials such as sand, gravel and grains. The external bolt on the flanges allow for easy installation and uninterrupted free flow.

Characteristic:

●Rugged Versatile alternative to inflexible steel piping system

●Absorb system vibration and saves wear on equipment.

●Can be cut to length and assembled on-site for immediate installation

●Split flange coupling

Temperature:

-40℃ to +82℃ (-40 ℉ to +180 ℉ )

Material: Good quality materials make our hose steady performance.

Production: Advanced technology and equipment to make the best quality rubber slurry/mud hose.

After finishing the slurry/mud hose production, we will pack the hose.

In general, the packing will use woven bag and plastic film.

Special packing is available according to customers’ requirements.

1. ORIENTFLEX has a strong sales and service team of 20 people, with more than 10 years experience in foreign trade, to provide professional services for customer.

2. ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines, 15 high-speed steel wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines. We have introduced VP brand Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.

3. Our factory has strong quality control team, we set up advanced laboratory.

Before the mass production, we test each batch of raw material.

After the production, we test each hose to guarantee a 100% qualification.

Each hose tested at 2 times of working pressure.

We do everything possible to supply good quality goods for our customer.

4. ORIENTFLEX has three warehouses.

Our product has exported to over 30 countries, including the United States, Britain, Brazil, Russia and so on. and we participate in overseas exhibitions every year.
